Descrição de produto

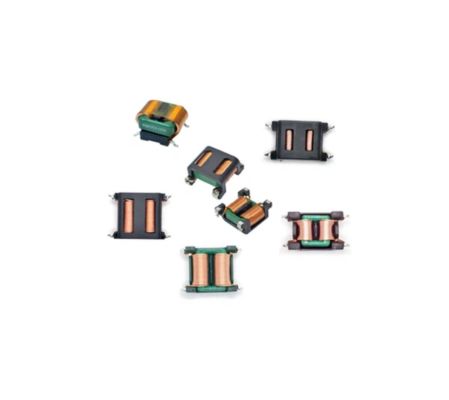

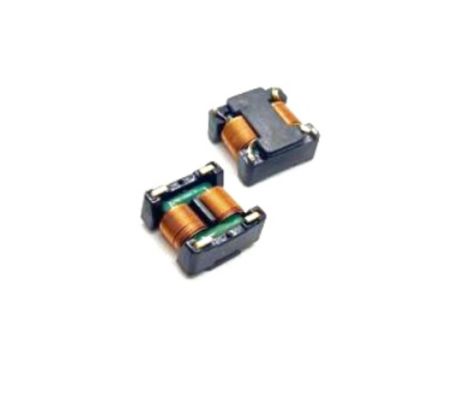

Compact, High-Performance Ultra-Low DCR SMD Flat Common Mode Choke for Power Supply Noise Suppression
Engineered for modern power electronics, the SQS1010A Series represents a line of high-quality SMD inductors specifically designed as common mode chokes for superior electromagnetic interference suppression.
Key Features
  • Compact SMD flat package for space-constrained PCB designs
  • Square core construction for low leakage and reduced DC resistance (DCR)
  • High-permeability material ensures high impedance at low frequencies
  • Excellent noise attenuation due to low stray capacitance
  • High insulation resistance and UL94V-0 flammability rating
  • RoHS and REACH compliant, suitable for global markets
Specifications
Part Number Inductance Min. (mH) DCR Max. (mΩ) Rated Current (A) Wire Gauge Turns Ref.
SQS1010A-001 10 200 0.8 - 1.2 0.1*0.7 37
SQS1010A-002 10 200 1.0 - 1.5 0.1*1.0 37
Technical Information & Operating Conditions
  • Test Frequency: 1.0 kHz, 0.25 V
  • Rated Voltage: 80 Vac - 265 Vac
  • Withstanding Voltage: 1.0 kVac for 2 seconds
  • Operating Temperature Range: -25°C to +125°C (including coil temperature rise)
  • Storage Temperature Range: -25°C to +100°C
  • Insulation Resistance: 100 MΩ Min. @ 500 Vdc
  • Recommended Power Range: Up to 40W
Applications
  • Switching Mode Power Supplies (SMPS): High-density designs for consumer and industrial equipment
  • Consumer Electronics: LCD/LED Televisions, laptop power adapters, and battery chargers
  • Home Appliances: Power management and noise filtering in various household devices
  • Industrial Electronics: Power line noise suppression in control systems and motor drives
