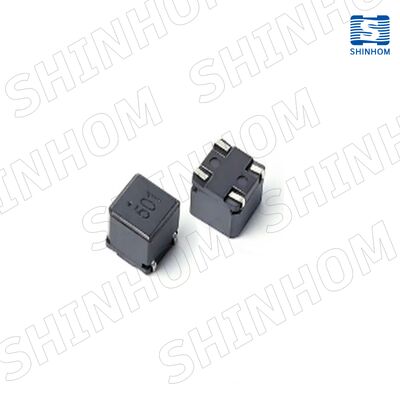

LQH6050S Series AEC-Q200 Compliant Common Mode Choke with High Common Mode Impedance in Compact SMD Package for EMI Suppression

5.000
MOQ
LQH6050S Series AEC-Q200 Compliant Common Mode Choke with High Common Mode Impedance in Compact SMD Package for EMI Suppression
Características Galeria Descrição de produto Falem agora.
Características
Especificações
Indutância: 1,5-10 µH
Impedância CM: 600-3000Ω@10MHz
Corrente nominal: 3,1-5,6 A @125°C
Dcr: 4-17mΩ
Tensão nominal: 80VDC
Informação básica
Lugar de origem: China
Marca: SHINHOM
Certificação: RoHS/ISO/UL/CE/IATF16949/CNAS
Número do modelo: Série LQH6050S
Documento: LQH6050S series_.pdf
Condições de Pagamento e Envio
Tempo de entrega: 2 a 8 semanas
Termos de pagamento: L/C,T/T
Descrição de produto
LQH6050S Series – AEC-Q200 SMD Common Mode Choke for Power Line EMI Suppression
Product Overview

The LQH6050S series is a compact, molded SMD common mode choke designed for superior EMI noise suppression in power and signal lines. With AEC‑Q200 compliance, it is well suited for automotive and industrial applications where reliability under harsh conditions is required.

Key Features
  • AEC‑Q200 compliant for automotive-grade reliability
  • Compact SMD package saves board space
  • High common mode impedance for effective EMI filtering
  • Robust molded construction supports automated PCB assembly
  • Ideal for power filtering, signal line noise reduction, and EMC compliance
Electrical Characteristics (@25°C)
Part Number Inductance (µH) Min. CM Impedance (Ω) @10MHz Typ. Rated Current (A) @125°C DCR (mΩ) Max. Insulation Resistance (MΩ)
LQH6050S-101 1.5 600 5.6 4 ≥10
LQH6050S-201 3.5 1200 4.4 7 ≥10
LQH6050S-301 6.5 1800 3.7 11 ≥10
LQH6050S-501 10 3000 3.1 17 ≥10
General Specifications
  • Rated current based on Irms temperature rise of 20°C
  • Inductance test: 0.1V, 100kHz
  • Rated voltage: 80VDC
  • Withstand voltage: 200VDC
  • Operating temperature: -55°C ~ +150°C (including temperature rise)
  • Storage temperature: -55°C ~ +150°C
  • Packaging: Tape & Reel (300 pcs/reel)
Applications
  • Automotive electronics (ECU, infotainment, ADAS)
  • Industrial power lines and signal interfaces
  • Communication equipment
  • Noise suppression for DC-DC converters and power filters
Product Advantages
The molded structure provides excellent mechanical strength and heat resistance, while the high common mode impedance ensures effective attenuation of unwanted noise without affecting the desired signal frequency.
