Name: High-Efficiency Compact DC Brushless Coreless Motor with Low Inertia for Robotics and Medical Devices
Brand: Shaanxi Shinhom Enterprise Co.,Ltd
SKU: Motor de copo sem núcleo sem escova DC
Availability: InStock

Características Galeria Descrição de produto Falem agora.

Características

Especificações

Tensão:: 3V / 6V / 12V (dependendo do modelo)

Torque:: 0,02 Nm a 0,3 Nm (dependendo do modelo)

Escala de velocidade:: 1000 a 5000 RPM

Eficiência:: Até 90%

Tipo de motor:: Motor DC sem núcleo sem escova

Classe de proteção:: IP40

Temperatura operacional:: -10 ° C a +50 ° C.

Peso:: 0,05 kg a 0,2 kg (dependendo do modelo)

Opções de personalização:: Disponível para configurações personalizadas de tensão, torque e velocidade

Tipo de resfriamento:: Refrigerar de ar natural

Nível de ruído:: ≤50dB (dependendo da carga e velocidade)

Inércia do Rotor:: Baixa inércia para resposta rápida e vibração mínima

Tipo de comutação:: Sem escova

Aplicações:: Robótica, Dispositivos Médicos, Eletrônicos Portáteis, Drone

Destacar:

High-Efficiency DC Brushless Coreless Motor

Low Inertia DC Brushless Coreless Motor

Informação básica

Lugar de origem: China

Marca: SHINHOM

Certificação: RoHS/ISO/UL/CE/IATF16949/CNAS

Número do modelo: Motor de copo sem núcleo sem escova DC

Condições de Pagamento e Envio

Tempo de entrega: 2 a 8 semanas

Termos de pagamento: L/C,T/T

Galeria

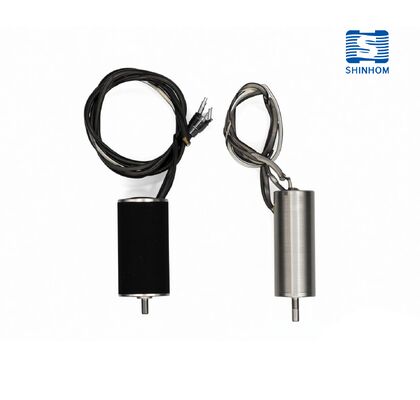

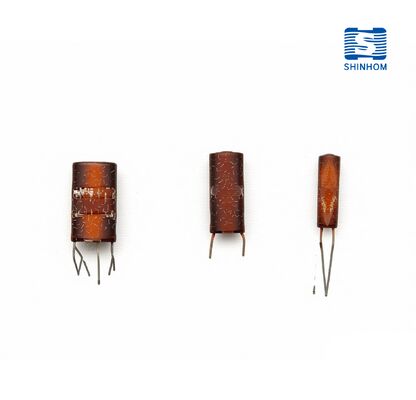

High-Efficiency Compact DC Brushless Coreless Motor with Low Inertia for Robotics and Medical Devices

Descrição de produto

High-Efficiency DC Brushless Coreless Cup Motor

Designed for compact, energy-efficient applications where high torque and long operational life are essential. This motor utilizes a coreless design that eliminates the iron core, reducing weight and electrical losses while increasing efficiency. Ideal for space-constrained environments including robotics, medical devices, and portable electronics.

Key Features

Coreless Design: Eliminates iron core for reduced weight and improved efficiency
Brushless Technology: Provides lower maintenance and longer lifespan compared to traditional brushed motors
Compact and Lightweight: Delivers high torque in a small form factor, ideal for tight spaces
Energy-Efficient: High efficiency with minimal power consumption, perfect for battery-powered devices
Smooth and Reliable: Ensures consistent performance for precision and high-reliability applications

Technical Data

Model	Rated Voltage (V)	Rated Current (A)	Rated Speed (r/min)	Rated Torque (mNm)	Weight (g)
J14ZWK01	12	≤0.75	22400	≥2.5	≤30
J16ZWK01	15	≤1.5	12000	≥12	≤70
J20ZWK03	24	≤0.35	4100	≥13	≤120
J22ZWK01	24	≤2.5	8800	≥48	≤120
J25ZWK01	28	≤1.8	8000	≥40	≤120
J25ZWK02	28	≤4.8	4100	≥105	≤120
J25ZWK03	28	≤1.8	4200	≥60	≤170
J28ZWK01	14	≤3	8100	≥30	≤95
J32ZWK01	24	≤2.7	9450	≥47	≤270
J40ZWK01	48	≤4	9150	≥160	≤590
J44ZWK01	24	≤1.3	4100	≥60	≤125
J45ZWK01	28	≤10	6700	≥320	≤420
J50ZWK01	48	≤2.1	7750	≥80	≤300

Applications

Robotics: Precision actuators and robotic joints in small form factors
Medical Devices: Equipment requiring efficient, compact motors for precise movement
Portable Electronics: Space-limited applications requiring high performance in cameras and handheld devices
Modeling & Hobby Projects: Model aircraft, drones, and hobbyist applications needing lightweight motors
