High-Performance Audio Frequency Transformer with 20Hz - 20kHz Operating Frequency and IEC 61558-2-6 Compliance

5000
MOQ
High-Performance Audio Frequency Transformer with 20Hz - 20kHz Operating Frequency and IEC 61558-2-6 Compliance
Características Galeria Descrição de produto Falem agora.
Características
Especificações
Frequência operacional: 20Hz - 20kHz
Isolamento: Blindagem eletrostática de camada tripla
Temperatura de armazenamento: -40 ° C a +105 ° C.
Material principal‌: Liga de níquel de alta permeabilidade
Destacar:

20Hz - 20kHz Operating Frequency Audio Frequency Transformer

,

IEC 61558-2-6 Compliance Split Core Current Transformer

,

High-Performance Low-Frequency Transformer
Informação básica
Lugar de origem: China
Marca: SHINHOM
Certificação: RoHS
Número do modelo: ACST13
Documento: ACST13 Series_.pdf
Condições de Pagamento e Envio
Tempo de entrega: 2 ~ 8 semanas
Termos de pagamento: L/C,T/T
Descrição de produto

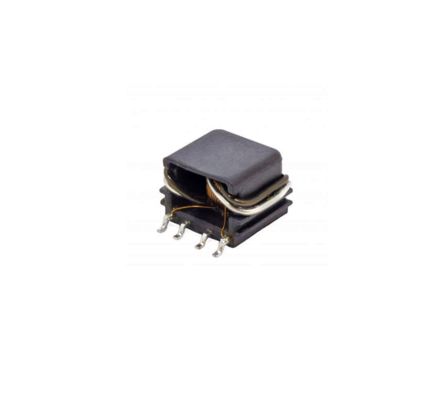

High-Performance Audio Frequency Transformer
Designed for high-performance audio signal processing systems, the ACST13 Series delivers precision impedance matching with exceptional linearity across the full frequency spectrum. Utilizing advanced core materials and balanced winding techniques, this low-frequency transformer maintains signal integrity while achieving ultra-low electromagnetic interference. The vacuum-impregnated construction ensures compliance with international safety standards, making it ideal for critical audio path applications.
Key Features
  • Frequency Response: ±0.1dB (20Hz-20kHz)
  • Primary Inductance: 250mH ±15%
  • DC Resistance: 12Ω (Primary) / 280Ω (Secondary)
  • Turns Ratio: 1:1.5 ±2%
  • Power Handling: 100mW max
  • Insulation Resistance: ≥100MΩ
  • Operating Temperature: -20°C to +85°C
Technical Specifications
Core Material High-permeability nickel alloy
Winding Configuration Triple-layer electrostatic shielding
Mounting Style Through-hole PCB mounting
Pin Spacing 10mm × 12mm standard grid
Weight 18g typical
Safety Standards Meets IEC 61558-2-6 isolation requirements
Applications
Professional Audio Equipment:
Microphone preamplifiers, console channel strips
Broadcast Systems:
Audio distribution amplifiers, mixing console I/O stages
Test Instruments:
Audio analyzer input/output isolation
Medical Audio:
Patient monitoring equipment audio circuits
Communication Devices:
VoIP conference system analog interfaces
